new AURA8-IP-3 Blade 8 processeurs audio WHEATSTONE

Eight processors in one IP network rack unit

Rack up eight audio processors in one networkable unit. Convenient, cost-effective, and more than able enough, the Aura8-IP-3 audio processing BLADE-3 has ample I/O and eight fully independent Vorsis multiband stereo audio processors on board. The 1RU BLADE-3 offers processing control and network connectivity through the WheatNet-IP Intelligent Network and full AGC, compression and limiting functions for HD, streaming or podcasting separate channels of programming in one unit.

The Aura8-IP-3 BLADE-3 audio processor brings two of Wheatstone’s core technologies together : Vorsis ultra-high resolution audio processing and the WheatNet-IP Intelligent Network. Merging these technologies in a single product provides a convenient and cost effective way to access audio processing wherever you need it on your WheatNet-IP network. The Aura8-IP-3 occupies a single rack space, but packs in an impressive eight fully independent Vorsis® multi-band stereo audio processors.

Each processing chain consists of a 4-band parametric equalizer followed by a crossover and three bands of compression. The compressors each feed their own limiters, whose outputs are then fed to a broadband lookahead limiter for tight peak control. The Aura8-IP has its own local I/O, with four stereo pairs of AES digital audio and four stereo pairs of analog line level audio in and out, and can function as a standalone processing engine. Because it’s a BLADE-3, it can also instantly configure itself as part of a new or existing WheatNet-IP Intelligent Network, making its processing power available throughout that network.

And, like all BLADE-3 access units, the Aura8-IP-3 BLADE-3 is AES67 compatible.

The Aura8-IP-3 is configured and controlled over Ethernet using a laptop or desktop computer. Included with the unit is Wheatstone’s acclaimed “Guru” GUI software, which allows easy setup of the processing using familiar, straightforward controls. Also available is a more sophisticated control interface called “GUI Pro,” which provides access to every individual processing parameter for expert-level adjustments

Plus de photos...

Caractéristiques principales

◾Highest performance 24-bit A/D and D/A convertors
◾AES67 compatible
◾8 complete Vorsis multiband processors, each with : ◾4-band parametric equalizer
◾3-way crossover
◾3 compressors
◾3 limiters
◾Final lookahead limiter
◾Two 8-channel utility mixers

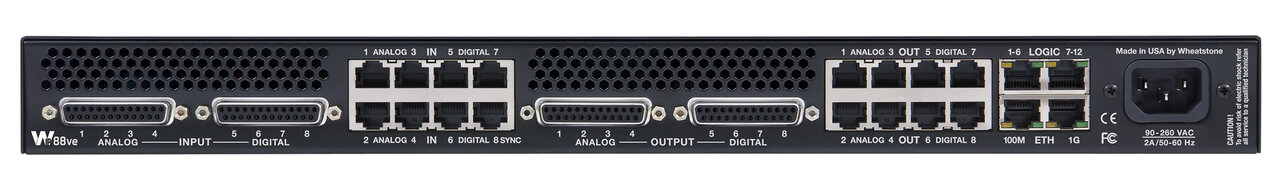

◾4 AES digital inputs on RJ-45 and “D” connectors
◾4 stereo analog inputs on RJ-45 and "D" connectors
◾4 AES digital outputs on RJ-45 and “D” connectors
◾4 stereo analog outputs on RJ-45 and "D" connectors
◾Can be used standalone or as part of a WheatNet-IP Intelligent Network
◾Built-in router control
◾Front panel headphone jack
◾Socketed output chips
◾Front panel metering
◾Rugged power supply
◾Colorful OLED display
◾Silence sensing can be applied to any output
◾One Gigabit Ethernet port
