◾New final clipping technology – very clean and very loud – simultaneously
◾New Five-band AGC with Sweet Spot Technology tuning capabilities
◾New codec artifact reduction algorithm helps tame coded stereo source material
◾New 31-band limiter algorithms
◾New left/right analog output routing for FM and HD processing
◾New equalizer offers both parametric and Baxandall-style shelving EQ
◾New bass management system with enhanced tuning features
◾New high performance stereo generator with DSB and two SSB encoding methods
◾New Guru GUI tuning capabilities
◾New advanced analysis features for displaying internal and external signals
◾New comprehensive security features designed for mixed-use sites
◾New post-processed loudness analysis conforms to BS-1770-S standards
◾New preset storage for up to 160 processing presets
◾Analog, digital and WheatNet-IP audio I/O with automatic ’failback to primary’
◾Exclusive stereo multipath controller technology for enhanced stereo reception
◾WheatNet-IP compatible
◾Remote processor control via wired Ethernet or integrated Wi-Fi connectivity
◾Specialized audio analysis functions for input or processed audio include : ◾1,024 point FFT
◾Oscilloscope
◾Energy versus Frequency
◾3-D plot of spectral content vs. time
◾Spectral Dynamic Range (a Vorsis exclusive)
◾Display of AirAura’s clipper distortion masking activity
◾Wheatstone® baseband192 built in for digital link to transmitter
Produits

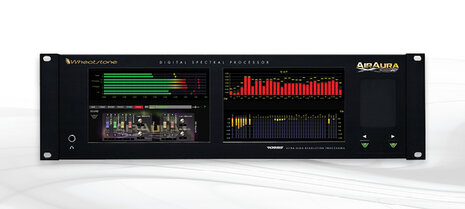

AirAura X3 - VORSIS
Being loud just to be loud is easy. It’s been easy for years. Turning up the volume without causing listener fatigue – that’s the real challenge. NEW X3 technology inside our AirAura delivers that sought-after loudness without ever sounding harsh, clipped, distorted or overdone. It simply sounds real.
NEW AirAura X3 : Louder and Clearer
The NEW AirAura X3 spectral audio processor for FM is equipped with processing technologies that simply didn’t exist until now, starting with a new final clipper that creates extremely competitive loudness while also minimizing listener fatigue. Another new technology unique to our NEW third-generation AirAura helps extend perceived stereo coverage, and yet another technology helps hide the annoying coding artifacts that might be present in a station’s stereo source material.
AirAura X3’s incredible dial presence, three selectable stereo multiplex modulation methods, the ability to help mask coding artifacts, and its mitigation of many stereo multipath annoyances as well as its exclusive clipper technology make it THE processor for on-air FM.
NEW AirAura X3 Distortion-Managed Final Clipper
AirAura X3’s has an entirely new final clipping technology that does two things very well : loud and clean. Simultaneously.
Its new final peak clipper is based on proven Vorsis technology that does not generate the objectionable aliasing and intermodulation distortions commonly associated with less-complex clipper technology. The result is squeaky
clean audio, even at extremely competitive loudness levels. AirAura utilizes high resolution distortion recognition algorithms to discern audio from distortion. The fine-grained selectivity afforded by this technology is the
best way to sense and truly mitigate distortion. Other technologies can only make a "best guess" at separating desirable audio components from undesirable distortion products.
By analyzing the audio and the distortion products created during peak control, AirAura removes distortion products and other artifacts that a listener might find objectionable. It is highly adept at minimizing intermodulation distortion, especially close-spaced difference frequency intermodulation products in the midrange frequencies where human hearing is the most sensitive.
During beta testing in major markets listeners commented about how smooth and open the entire audio spectrum sounded when processed by our new AirAura clipper. Achieving effortless competitive loudness on the air while remaining subjectively cleaner than their usual on-air processor was never an issue. In fact, in one top-ten market we were actually asked if we could "turn it down just a little bit."
NEW AirAura X3 PostCode Tool
Some audio processors precondition audio to make it more favorable for a codec’s input, but no on-air processor had ever been developed with features specifically designed to help already coded stereo audio sound better after
the fact. That is, until now.
AirAura X3’s all-new PostCode Tool ™ helps minimize the audibility of coding artifacts in stereo program material without degrading the overall listening experience. By reducing the swishing, swirling, grainy artifacts of coded audio, the AirAura X3 enables listeners to listen as long as they like with no fatigue.
NEW AirAura X3 “Fine Grain” Processing
The AirAura X3 has an entirely new algorithm for selectively processing only those frequencies that need processing, which overcomes the limitations of peak limiters in other on-air processors. Using 31 limiter bands selected according to ISO standard 1/3 octave center frequencies, the AirAura limiters (one for FM, one for HD) perform precision spectral energy control without generating additional density or artifacts usually associated with peak limiters having fewer bands. Operating according to accepted principles of human psychoacoustics, the action of the limiter goes completely unnoticed by the ear. Because of the need for very shallow limiting in each band, there are absolutely no ’swishing’ artifacts and no unnatural density buildup ; just increased on-air loudness, detail, and "listenability" of the station’s programming.
NEW AirAura X3 five-band Sweet Spot AGC
AirAura X3 has an entirely new Sweet Spot Technology (SST) that effectively manages the behavior of the multiband AGC as program content density changes, something a typical broadband AGC simply cannot do. It effortlessly handles transitions between the hyper-compressed recordings of today and those of the past that have considerably more dynamic range. SST achieves uncannily natural-sounding consistency in both on-air loudness and spectral balance regardless of density variations in the incoming source material.
NEW AirAura X3 Vorsis Bass Management System
AirAura X3 has a new and better Vorsis Bass Management System (VBMS) with new tuning features that enhance deep bass without affecting the cleanliness of mid and high frequency program. Bass detail and the clarity of higher frequency audio are enhanced by this more powerful algorithm. If you thought second-generation AirAura bass was something, you will be amazed at the deep and natural sounding bass coming from the AirAura X3.
Exclusive Multipath Control
Exclusive to the Wheatstone line of audio processors is the Multipath Limiter. This single user control can help mitigate the audible effects of multipath as well as reduce receiver-induced stereo blend by limiting the amount of L-R as a percentage of L+R for a more consistent and predictable sound.
AirAura X3’s Smarter Stereo Enhancement
Operating in the sum and difference domain and utilizing specialized spectral management algorithms, AirAura’s Smart Stereo Enhance provides a smooth, natural, wide listening experience without triggering multipath effects. It delivers an extremely stable ’on-air’ stereo image that’s exciting to listen to. Users have reported hearing, for the very first time, artistically important nuances in familiar music that could not be heard when that material was processed by other on-air processors.
Wheatstone® baseband192
Wheatstone’s baseband192 is an open standard technology that eliminates the use of an analog composite interface between processing and transmission, which has been the last holdout to the 100% digital air chain.
A single AES/EBU cable between a Wheatstone processor and a current solid-state FM transmitter carries the baseband signal, bypassing the need for multiplexing in the exciter and eliminating the resulting signal overshoot with associated loudness tradeoff. The baseband192 interface is now available as a standard feature in Wheatstone AirAura X3, FM-531HD and VP-8IP audio processors.
NEW AirAura X3 : Louder and Clearer
The NEW AirAura X3 spectral audio processor for FM is equipped with processing technologies that simply didn’t exist until now, starting with a new final clipper that creates extremely competitive loudness while also minimizing listener fatigue. Another new technology unique to our NEW third-generation AirAura helps extend perceived stereo coverage, and yet another technology helps hide the annoying coding artifacts that might be present in a station’s stereo source material.
AirAura X3’s incredible dial presence, three selectable stereo multiplex modulation methods, the ability to help mask coding artifacts, and its mitigation of many stereo multipath annoyances as well as its exclusive clipper technology make it THE processor for on-air FM.
NEW AirAura X3 Distortion-Managed Final Clipper
AirAura X3’s has an entirely new final clipping technology that does two things very well : loud and clean. Simultaneously.
Its new final peak clipper is based on proven Vorsis technology that does not generate the objectionable aliasing and intermodulation distortions commonly associated with less-complex clipper technology. The result is squeaky
clean audio, even at extremely competitive loudness levels. AirAura utilizes high resolution distortion recognition algorithms to discern audio from distortion. The fine-grained selectivity afforded by this technology is the
best way to sense and truly mitigate distortion. Other technologies can only make a "best guess" at separating desirable audio components from undesirable distortion products.
By analyzing the audio and the distortion products created during peak control, AirAura removes distortion products and other artifacts that a listener might find objectionable. It is highly adept at minimizing intermodulation distortion, especially close-spaced difference frequency intermodulation products in the midrange frequencies where human hearing is the most sensitive.
During beta testing in major markets listeners commented about how smooth and open the entire audio spectrum sounded when processed by our new AirAura clipper. Achieving effortless competitive loudness on the air while remaining subjectively cleaner than their usual on-air processor was never an issue. In fact, in one top-ten market we were actually asked if we could "turn it down just a little bit."
NEW AirAura X3 PostCode Tool
Some audio processors precondition audio to make it more favorable for a codec’s input, but no on-air processor had ever been developed with features specifically designed to help already coded stereo audio sound better after
the fact. That is, until now.
AirAura X3’s all-new PostCode Tool ™ helps minimize the audibility of coding artifacts in stereo program material without degrading the overall listening experience. By reducing the swishing, swirling, grainy artifacts of coded audio, the AirAura X3 enables listeners to listen as long as they like with no fatigue.
NEW AirAura X3 “Fine Grain” Processing
The AirAura X3 has an entirely new algorithm for selectively processing only those frequencies that need processing, which overcomes the limitations of peak limiters in other on-air processors. Using 31 limiter bands selected according to ISO standard 1/3 octave center frequencies, the AirAura limiters (one for FM, one for HD) perform precision spectral energy control without generating additional density or artifacts usually associated with peak limiters having fewer bands. Operating according to accepted principles of human psychoacoustics, the action of the limiter goes completely unnoticed by the ear. Because of the need for very shallow limiting in each band, there are absolutely no ’swishing’ artifacts and no unnatural density buildup ; just increased on-air loudness, detail, and "listenability" of the station’s programming.
NEW AirAura X3 five-band Sweet Spot AGC
AirAura X3 has an entirely new Sweet Spot Technology (SST) that effectively manages the behavior of the multiband AGC as program content density changes, something a typical broadband AGC simply cannot do. It effortlessly handles transitions between the hyper-compressed recordings of today and those of the past that have considerably more dynamic range. SST achieves uncannily natural-sounding consistency in both on-air loudness and spectral balance regardless of density variations in the incoming source material.
NEW AirAura X3 Vorsis Bass Management System
AirAura X3 has a new and better Vorsis Bass Management System (VBMS) with new tuning features that enhance deep bass without affecting the cleanliness of mid and high frequency program. Bass detail and the clarity of higher frequency audio are enhanced by this more powerful algorithm. If you thought second-generation AirAura bass was something, you will be amazed at the deep and natural sounding bass coming from the AirAura X3.
Exclusive Multipath Control
Exclusive to the Wheatstone line of audio processors is the Multipath Limiter. This single user control can help mitigate the audible effects of multipath as well as reduce receiver-induced stereo blend by limiting the amount of L-R as a percentage of L+R for a more consistent and predictable sound.
AirAura X3’s Smarter Stereo Enhancement
Operating in the sum and difference domain and utilizing specialized spectral management algorithms, AirAura’s Smart Stereo Enhance provides a smooth, natural, wide listening experience without triggering multipath effects. It delivers an extremely stable ’on-air’ stereo image that’s exciting to listen to. Users have reported hearing, for the very first time, artistically important nuances in familiar music that could not be heard when that material was processed by other on-air processors.
Wheatstone® baseband192
Wheatstone’s baseband192 is an open standard technology that eliminates the use of an analog composite interface between processing and transmission, which has been the last holdout to the 100% digital air chain.
A single AES/EBU cable between a Wheatstone processor and a current solid-state FM transmitter carries the baseband signal, bypassing the need for multiplexing in the exciter and eliminating the resulting signal overshoot with associated loudness tradeoff. The baseband192 interface is now available as a standard feature in Wheatstone AirAura X3, FM-531HD and VP-8IP audio processors.
