◾Control of all audio parameters

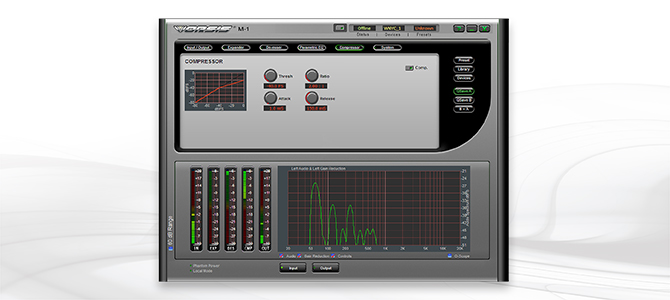

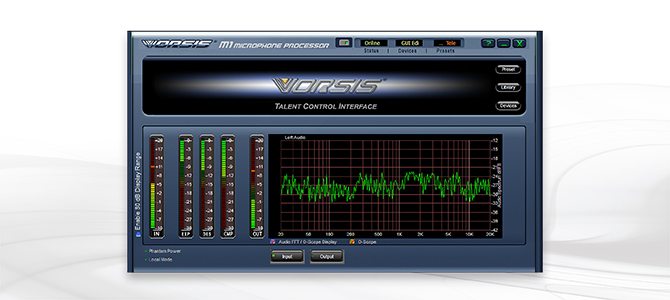

◾Intuitive PC graphical user interface (GUI)
◾High quality, low noise microphone preamp
◾Phantom power
◾Metering : In/Out, De-esser, Compression, Expansion
◾Password based security
◾44.1, 48 or 96 kHz AES3 output sample rates
◾24-bit A/D, D/A converters
◾Preset storage/recall via GUI
◾Variable frequency De-esser
◾Voice phase scrambler
◾Adjustable compression
◾Downward expansion
◾Output limiter
◾EQ : two-band parametric plus variable high and low shelving
◾Tunable high and low pass filters
◾FFT voice energy display via GUI
◾Quick save/compare function
◾TCP/IP Ethernet remote control
◾Takes up only one rack space
Produits
M1 Digital voice processor - VORSIS
M-1 Digital Voice Processor - Personalized Sound
The M1 is a flexible digital microphone processor. It offers unlimited presets, security and networkability in an all-digital framework, with easy-to-set up parameters. Either from the front panel, or from the GUI - all parameters of the M1 can be controlled to give each voice talent his or her own personal sound at the press of a button.
The M1 microphone processor is equipped with a Super-Quiet (SQ) microphone preamplifier featuring an extremely low noise floor, very wide dynamic range, faithfully accurate transient response, and ruler flat frequency response. Operating in harmony with high quality 24-bit A/D converters and a 96kHz base sample rate, the M1 adds absolutely no undesired coloration to the signal and faithfully preserves the sound of any microphone and talent combination.
The features on the M1 include a four-band parametric EQ, high- and low-pass filters, de-esser and expander and of course, our proprietary Vorsis dynamics processing. The unit comes loaded with factory designed presets, and designing your own is easy, thanks to features such as "Quick Save" and ’Quick Compare" that allow you to toggle back and forth between different presets as you adjust them.From one GUI an entire group of M1’s can be controlled, making multiple microphone processor management easy.
Wheatstone-designed EQ
A very high quality parametric and shelving equalization is available to sweeten the sound of any microphone as desired without adding noise or undesirable artifacts to the signal.
Wheatstone-designed Dynamics Control
A high performance de-esser and a smooth sounding, very low distortion compressor/limiter dynamics control section round out the M1’s offerings to create powerful and authoritative presence to production or on-air microphones.
Recommended Applications :
◾AM Analog
◾FM Analog
◾FM HD
◾AM HD
◾Television
◾Webcasting
◾Podcasting
◾Mastering & Production
◾Live Sound
The M1 is a flexible digital microphone processor. It offers unlimited presets, security and networkability in an all-digital framework, with easy-to-set up parameters. Either from the front panel, or from the GUI - all parameters of the M1 can be controlled to give each voice talent his or her own personal sound at the press of a button.
The M1 microphone processor is equipped with a Super-Quiet (SQ) microphone preamplifier featuring an extremely low noise floor, very wide dynamic range, faithfully accurate transient response, and ruler flat frequency response. Operating in harmony with high quality 24-bit A/D converters and a 96kHz base sample rate, the M1 adds absolutely no undesired coloration to the signal and faithfully preserves the sound of any microphone and talent combination.
The features on the M1 include a four-band parametric EQ, high- and low-pass filters, de-esser and expander and of course, our proprietary Vorsis dynamics processing. The unit comes loaded with factory designed presets, and designing your own is easy, thanks to features such as "Quick Save" and ’Quick Compare" that allow you to toggle back and forth between different presets as you adjust them.From one GUI an entire group of M1’s can be controlled, making multiple microphone processor management easy.
Wheatstone-designed EQ
A very high quality parametric and shelving equalization is available to sweeten the sound of any microphone as desired without adding noise or undesirable artifacts to the signal.
Wheatstone-designed Dynamics Control
A high performance de-esser and a smooth sounding, very low distortion compressor/limiter dynamics control section round out the M1’s offerings to create powerful and authoritative presence to production or on-air microphones.
Recommended Applications :
◾AM Analog
◾FM Analog
◾FM HD
◾AM HD
◾Television
◾Webcasting
◾Podcasting
◾Mastering & Production
◾Live Sound
